How to create a SolusVM VPS product in WHMCS with solusvmpro module?

Question

How to create a SolusVM VPS product in WHMCS with solusvmpro module?

Answer

1. Log in WHMCS administrator interface.

2. Open Setup > Product/Services > Configurable Options > Create a New Group.

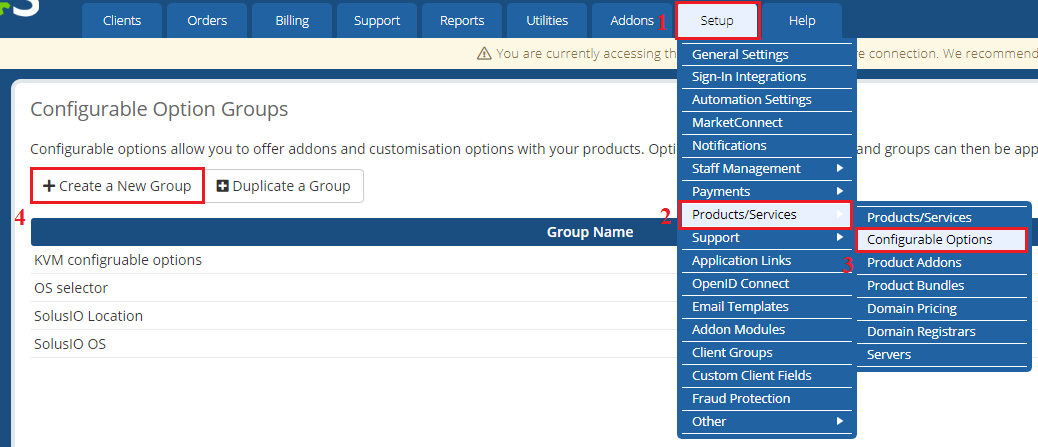

   How to create a new options group



3. Create a Configurable Options group for the necessary virtualization and type the necessary Name and Description.

4. Click Save Changes.

5. Click Add New Configurable Option:

   Options:

   • Type Operating System in Option Name field.

   • Select Dropdown in Option Type field.

   • In Add Option field type the following:
     filename-of-template | Displayed name

   Where

   filename-of-template - filename of the template without ".tar.gz" or ".iso" extension. Can be checked in Media > List Templates > <required-virtualization> > Edit Template next to the required template > Template section.

   For example, if the filename of a template is centos-8-x86_64.tar.gz, then Add Option filed will be centos-8-x86_64 | CentOS 8

   Displayed name - any name which will be displayed in WHMCS for the template.

6. Add other Operating Systems using step 6.

7. Click Save Changes, close the window, and click Save Changes again.

8. Select the required Product in Assigned Products field.

9. Click Close Window.

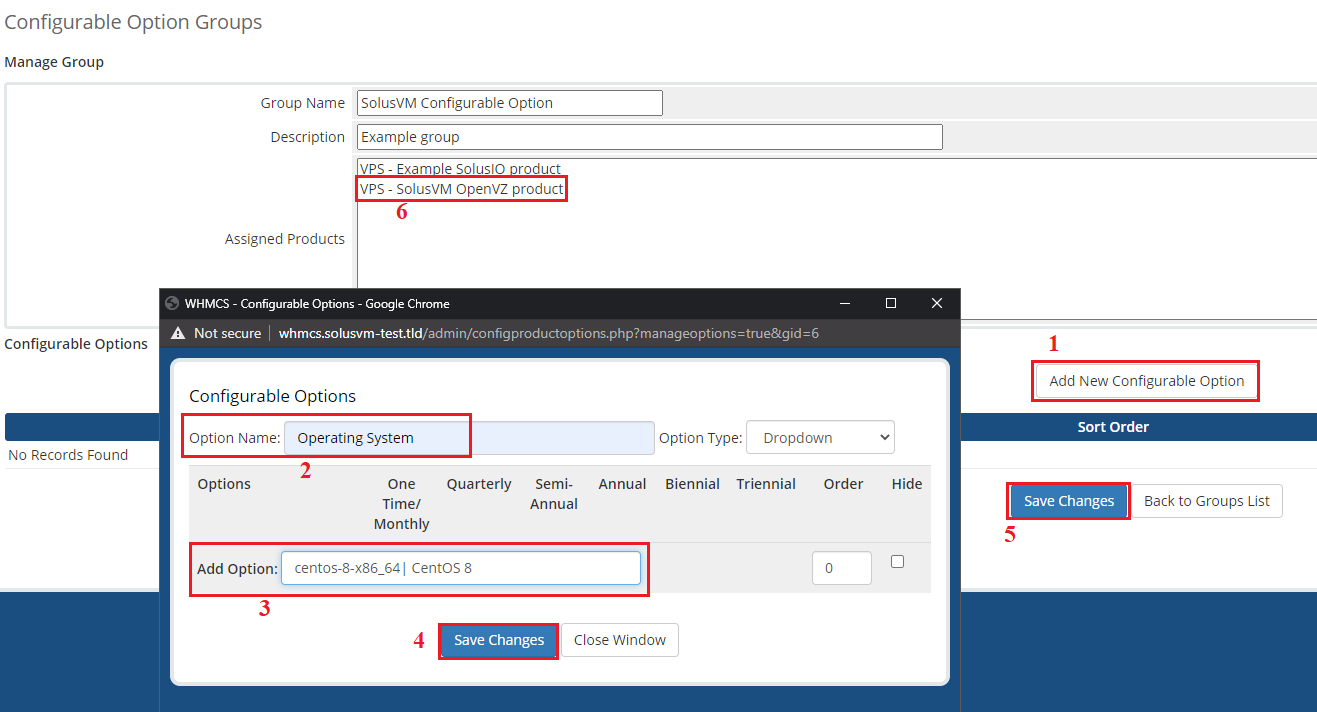

   Example of option



10. Open Setup > Product/Services > Product Services > Create a New Product.

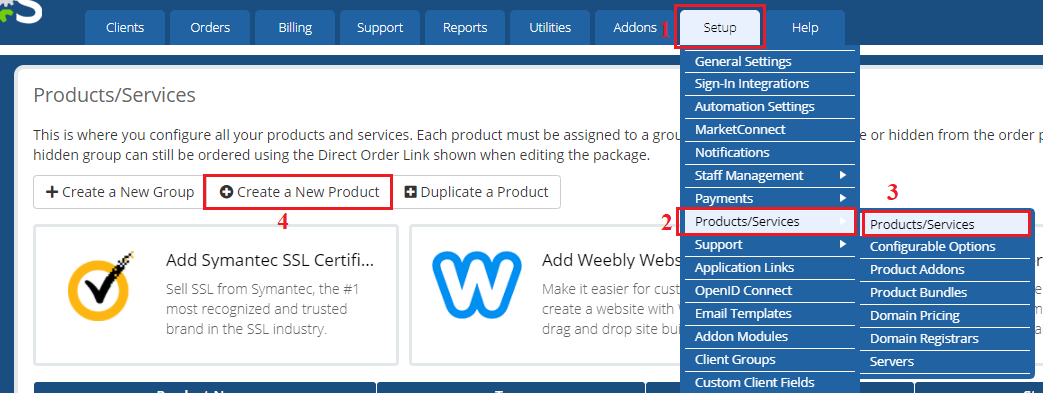

    How to create product



11. Select:

    Product Settings:

    in Product Type - Dedicated/VPS Server.

    in Product Group - any required group. In case there is none - it can be created in Setup > Product/Services > Product/Services > Create a New Group.

    in Product Name - type any required name.

12. Click Continue.

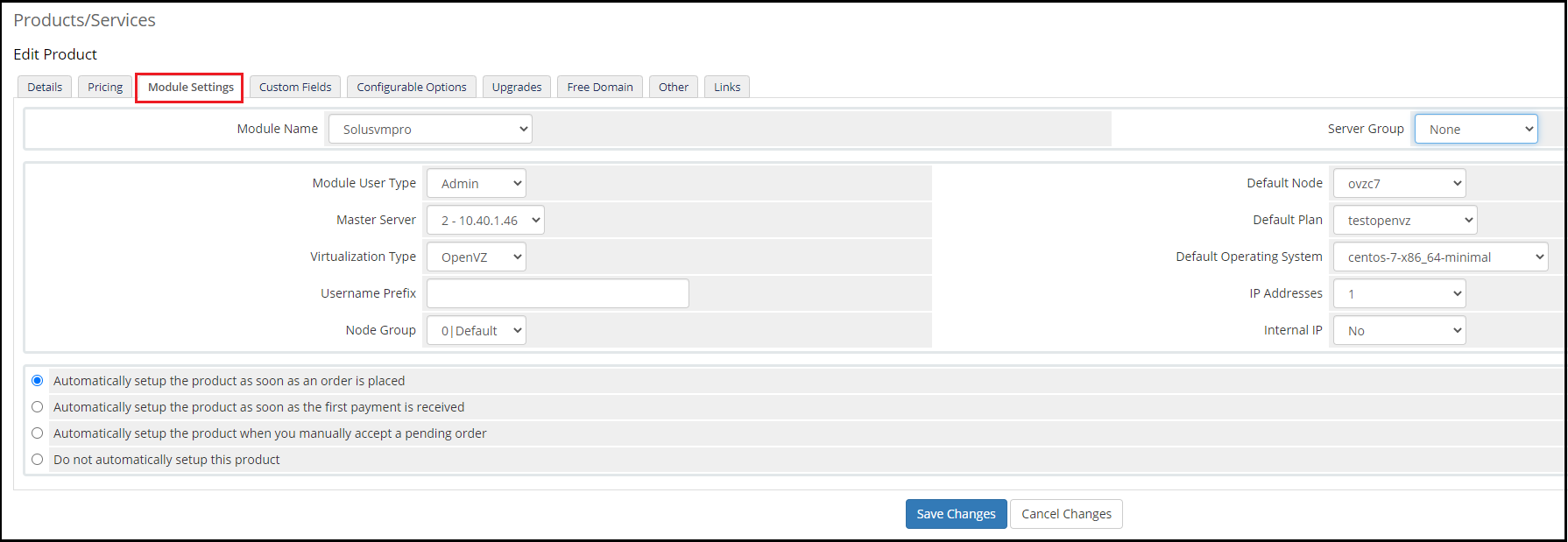

13. Open Module Settings tab.

14. Select:

    Module Settings

    Module Name - solusvmpro.

    Module User Type - Admin.

    Master Server - the required SolusVM Master server.

    Virtualization Type - the required type.

15. Click Save Changes.

16. Continue changing Module Settings:

    Additional Settings

    Username Prefix - any preferred.

    Node Group - change according to node groups existing in SolusVM master.

    Default Node - if not already selected - select the node where VPS will be created by default.

    Default Plan - the required plan.

    Default Operating System - set as preferred.

    IP Addresses - any preferred number.

    Internal IP - any preferred number.



17. Click Save Changes.

18. Open Custom Fields.

19. Add fields according to Custom Fields

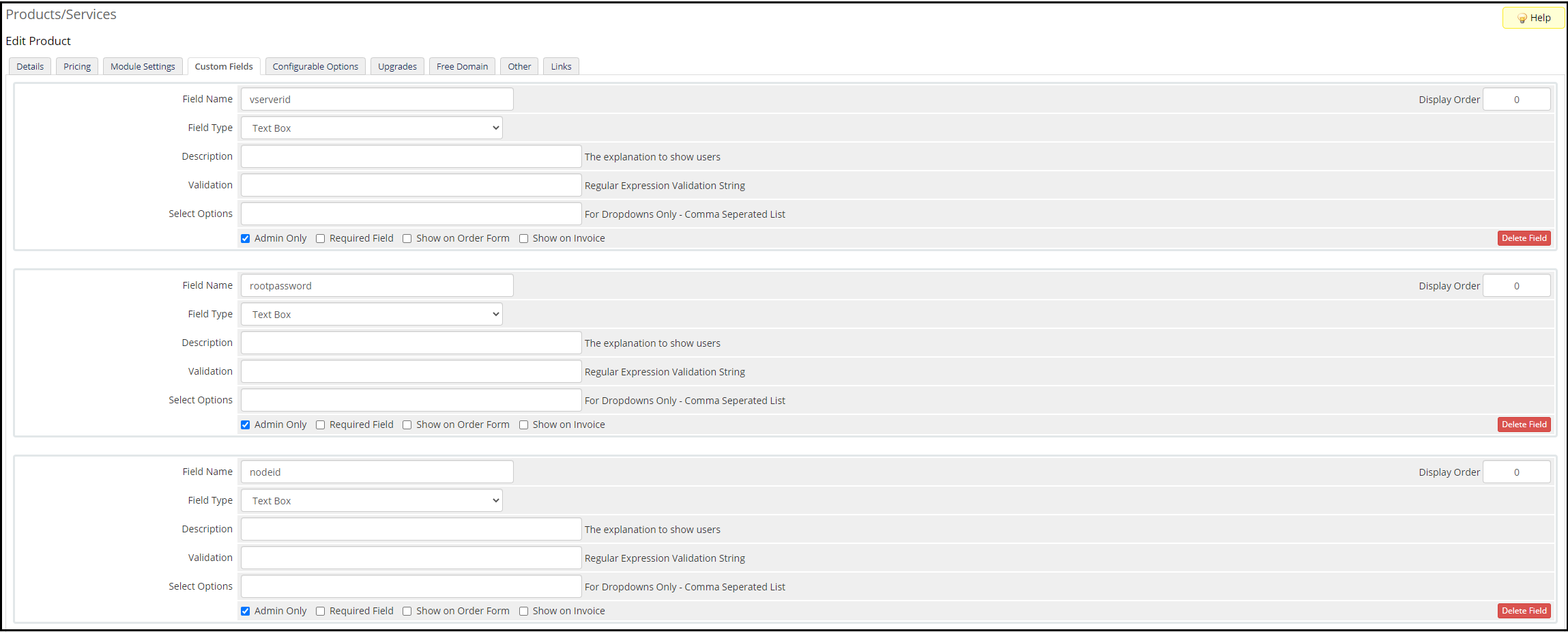

    Example of Custom Fields.



20. Click on Save Changes.

21. Use created product to create SolusVM VPS.
