How to configure thin-provisioned raw disks for storage for SolusVM KVM slave?

Question

How to configure thin-provisioned raw disks for storage for SolusVM KVM slave?

Answer

Warning: This feature has the following limitations - migration and AutoFTP Backup with raw disks do not work. Enable this feature at your own risk.

1. Connect to a slave server over SSH.

2. Create the directory for disks:

   # mkdir /vmdata && chown solusvm.solusvm /vmdata && touch /usr/local/solusvm/data/.disk_image_storage

3. Create a file solusvm which will be used as a volume group for Slave node:

   # touch /dev/solusvm

4. Login to SolusVM administrator interface.

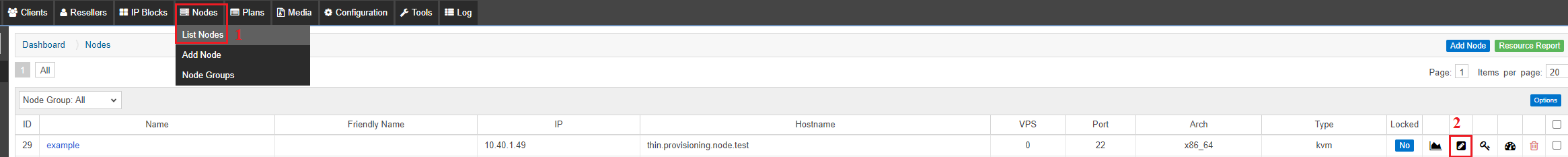

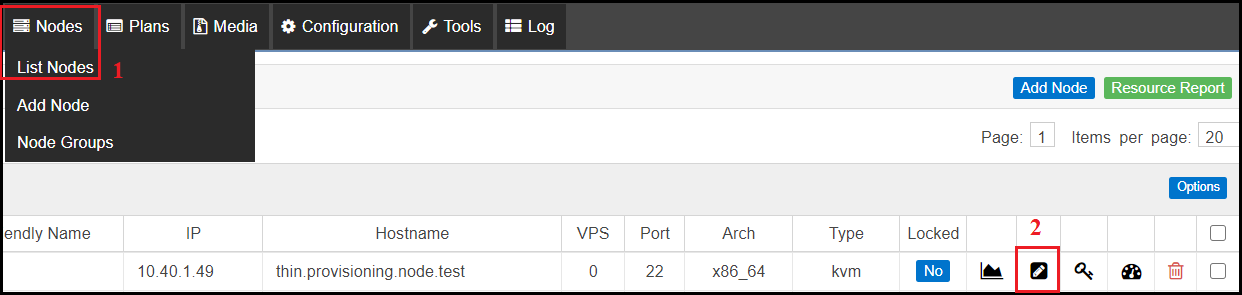

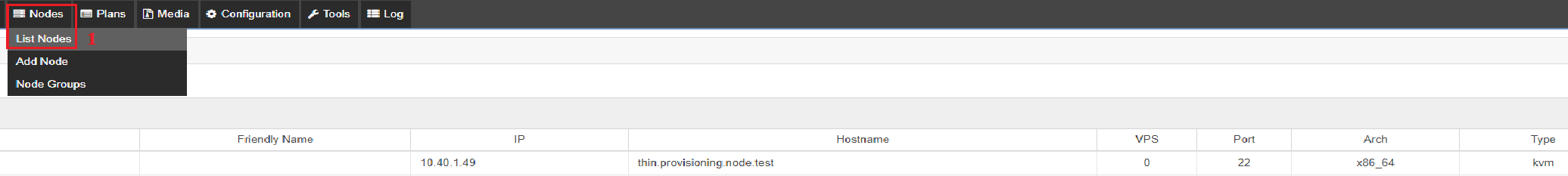

5. Open SolusVM > Node > Edit Node for the KVM node.

   How to edit a node

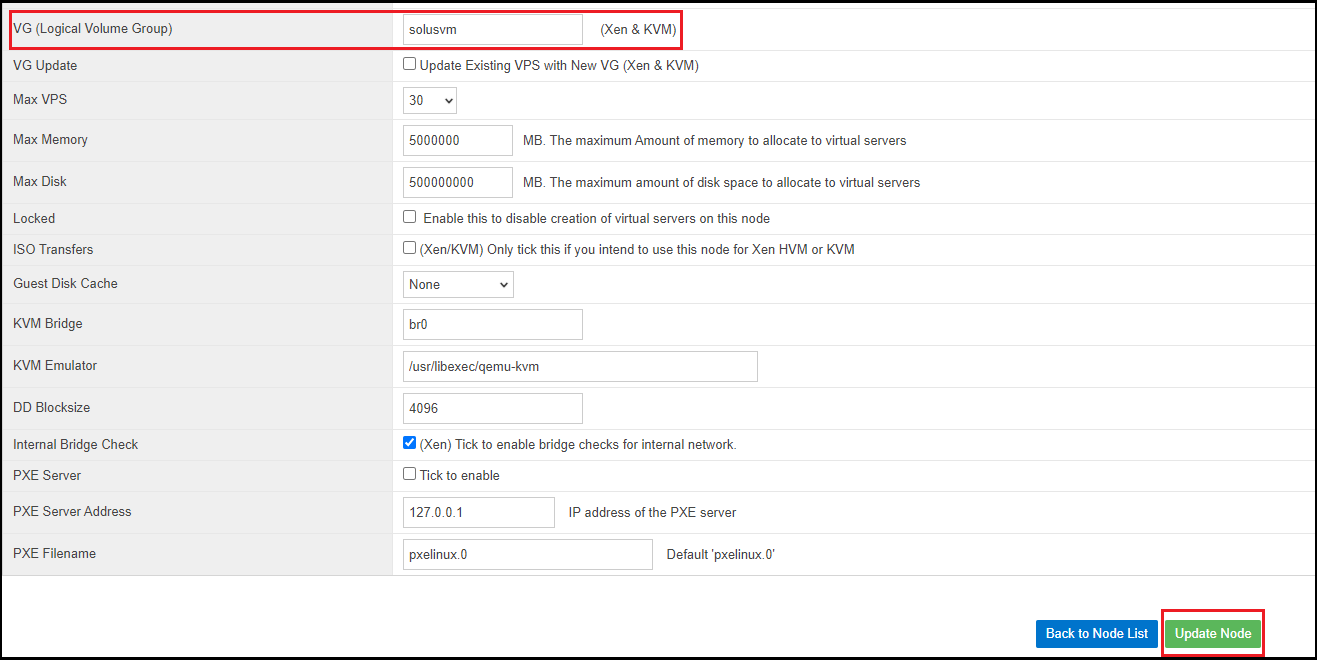

6. Set solusvm in VG (Logical Volume Group) field.

   How to add a volume group



7. Click on Update Node.
